Binding Second Gridview By selecting First Gridview Record


Introduction:-

                  Here I have explained how to bind a child gridview by selecting a row of parent gridview in asp.net.

Description:-

                  In my previous article I have explained Different ways to bind data in a textBox from gridview cells by click on select button using both row command and selected index changed event , How to get row number from gridview on textbox change event using javascript without page refreshing , How to show a pop up with gridview row data using string builder as well as how to change gridview row color dynamically? , Gridview row editing, updating, deleting and row command events , Upload a excel file and display it in a gridview as well as display this excel sheet from a starting row to ending row, Adding dynamic rows in asp.net gridview control with textboxes and with delete functionality , Without data showing gridview with empty textbox to submit data into database , Using asp.net gridview EmptyDataTemplate and FooterTemplate add record to database , how to insert images into database and how to retrieve and bind images to gridview using asp.net (or)save and retrieve images from database using asp.net .

                In this article I have taken two gridview control where I am displaying the selected row data of first gridview in second gridview.

Here I will explain you step by step.

First take a overlook on my solution which will give you some basic clarity.



Solution Image



Inside App_data  I have used my own sql server database, take a look



Server Explorer Image




Now I have created two Table as


v  Employee
v  EmploeeFeedback


Employee Table Overview:-


Employee Table Design

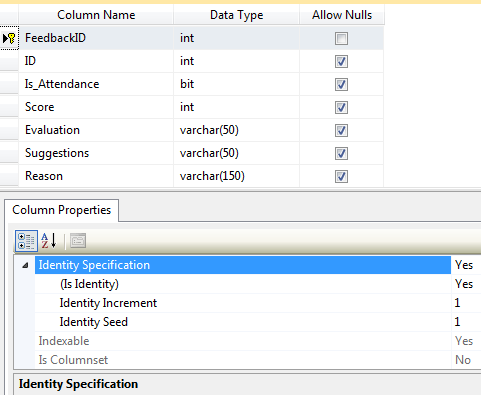

EmployeeFeedback Table Overview:-


EmployeeFeedback table design


I have manually enter some data into Employee Table. Here is my data inside that Employee Table


Employee Table Records




Now come to the designing part,first add a web page  as CollapsibleGridView.aspx

and Take a Gridview control and name it as grdEmployeesAdded.

Now take another Griview  inside the parent gridview which is created earlier and name it as gdViewChild.

Take a look  on the Design View of my page:-




Design View of Grids




Here I am showing my Source Code:-

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Gridview.aspx.cs" Inherits="Gridview" %>


<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">


<html xmlns="http://www.w3.org/1999/xhtml">


<head runat="server">


    <title></title>


</head>


<body>


    <form id="form1" runat="server">


    <div>


        <asp:GridView ID="grdEmployeesAdded" runat="server" CssClass="gridview"

AutoGenerateColumns="false"


            Width="1009px" OnRowCommand="grdEmployeesAdded_RowCommand">


            <Columns>


                <asp:TemplateField>


                    <HeaderTemplate>


                        <tr style="background-color: Green;">


                            <th scope="col">


                                EMPLOYEE NAME


                            </th>


                            <th scope="col">


                                DESIGNATION


                            </th>


                            <th scope="col">


                                DEPARTMENT


                            </th>


                        </tr>


                    </HeaderTemplate>


                    <ItemTemplate>


                        <tr style="background-color: Gray;">


                            <td>


                                <asp:LinkButton ID="lblEmployeeName" runat="server"

CommandArgument='<%#Eval("ID") %>'


                              CommandName="View" Text='<%#Eval("Name") %'></asp:LinkButton>


                            </td>


                            <td valign="top">


                                <asp:Label ID="lblDesignation" runat="server"

Text='<%#Eval("Designation") %>'></asp:Label>


                            </td>


                            <td valign="top">


                                <asp:Label ID="lblDepartment" runat="server"

Text='<%#Eval("Department") %>'></asp:Label>


                            </td>


                        </tr>


                    </ItemTemplate>


                </asp:TemplateField>


            </Columns>


            <EmptyDataTemplate>


                <div style="width: 100%; height: 24px; border: 1px Solid #333333; text-align: center;

                    vertical-align: middle">


                    <asp:Label ID="lblEmptyMessage" runat="server" Text="No Record Found" Style="font-family: Calibri;

                        font-size: 14px; font-weight: bold; height: 24px"></asp:Label>


                </div>


            </EmptyDataTemplate>


        </asp:GridView>


    </div>


    <br />


    <asp:GridView ID="gdViewChild" Caption="</br>Binding Second GridView"

AutoGenerateColumns="false"


        runat="server">


        <Columns>


            <asp:TemplateField>


                <ItemTemplate>


                    <tr style="background-color: Black; color: White;">


                        <th scope="col">


                            EMPLOYEE NAME


                        </th>


                        <th scope="col">


                            DESIGNATION


                        </th>


                        <th scope="col">


                            DEPARTMENT


                        </th>


                    </tr>


                    <tr style="background-color: Gray;">


                        <td>


                            <asp:HiddenField ID="hdnEmployeeID" runat="server"
Value='<%#Eval("ID") %>' />


                            <asp:Label ID="lblEmployeeName" runat="server"
Text='<%#Eval("Name") %>'></asp:Label>


                        </td>


                        <td valign="top">


                            <asp:Label ID="lblDesignation" runat="server"
Text='<%#Eval("Designation") %>'></asp:Label>


                        </td>


                        <td valign="top">


                            <asp:Label ID="lblDepartment" runat="server"
Text='<%#Eval("Department") %>'></asp:Label>


                        </td>


                    </tr>


                </ItemTemplate>


            </asp:TemplateField>


        </Columns>


    </asp:GridView>


    </form>


</body>


</html>

Here is my Code Behind:-



using System;


using System.Collections.Generic;


using System.Linq;


using System.Web;


using System.Web.UI;


using System.Web.UI.WebControls;


using System.Data;


using System.Data.SqlClient;


public partial class Gridview : System.Web.UI.Page


{


    protected void Page_Load(object sender, EventArgs e)


    {


        BindFirstGridView();


    }


// Now come to the coding part ,here I have bind Employee records in First  gridview


    public void BindFirstGridView()


    {


        DataTable dt = new DataTable();


        SqlConnection con = new SqlConnection

(System.Configuration.ConfigurationManager.ConnectionStrings

["ShibashishColapsibleGridDataBaseConnectionString"].ConnectionString);


        SqlCommand com = new SqlCommand("select * from Employee", con);


        SqlDataAdapter da = new SqlDataAdapter(com);


        da.Fill(dt);


        grdEmployeesAdded.DataSource = dt;


        grdEmployeesAdded.DataBind();


    }


// Now come to the coding part ,here I have bind Employee records in Second

 gridview


    protected void grdEmployeesAdded_RowCommand(object sender,

GridViewCommandEventArgs e)


    {


        if (e.CommandName == "View")


        {


            DataTable dt = new DataTable();


            SqlConnection con = new SqlConnection

(System.Configuration.ConfigurationManager.ConnectionStrings

["ShibashishColapsibleGridDataBaseConnectionString"].ConnectionString);


            SqlCommand com = new SqlCommand("select * from Employee where ID=" +

e.CommandArgument.ToString(), con);


            SqlDataAdapter da = new SqlDataAdapter(com);


            da.Fill(dt);


            gdViewChild.DataSource = dt;


            gdViewChild.DataBind();


        }


    }


}



Here is my connectionstring inside web.cofig:-



<?xml version="1.0"?>


<configuration>


  <connectionStrings>


    <add name="ShibashishColapsibleGridDataBaseConnectionString" connectionString="Data

Source=.\SQLEXPRESS;AttachDbFilename=

|DataDirectory|\ShibashishColapsibleGridDataBase.mdf;Integrated Security=True;User

Instance=True" providerName="System.Data.SqlClient"/>


  </connectionStrings>


  <system.web>


    <compilation debug="true" targetFramework="4.0">


     < assemblies>


       < add assembly="System.Data.Linq, Version=4.0.0.0, Culture=neutral,

PublicKeyToken=B77A5C561934E089"/>


     < /assemblies>


    </compilation>


  </system.web>


</configuration>



Now here is the Result View :-


Browser View before click



Now By Click on The last record it will bind data in second Gridview like below



Browser view after clicked


Ah.. now you have the clear idea about this article.If you have still having some doubt you can contact me through any of the social media.

Hope you will like this article.

Keep coding……



Thanks Shibashish Mohanty
